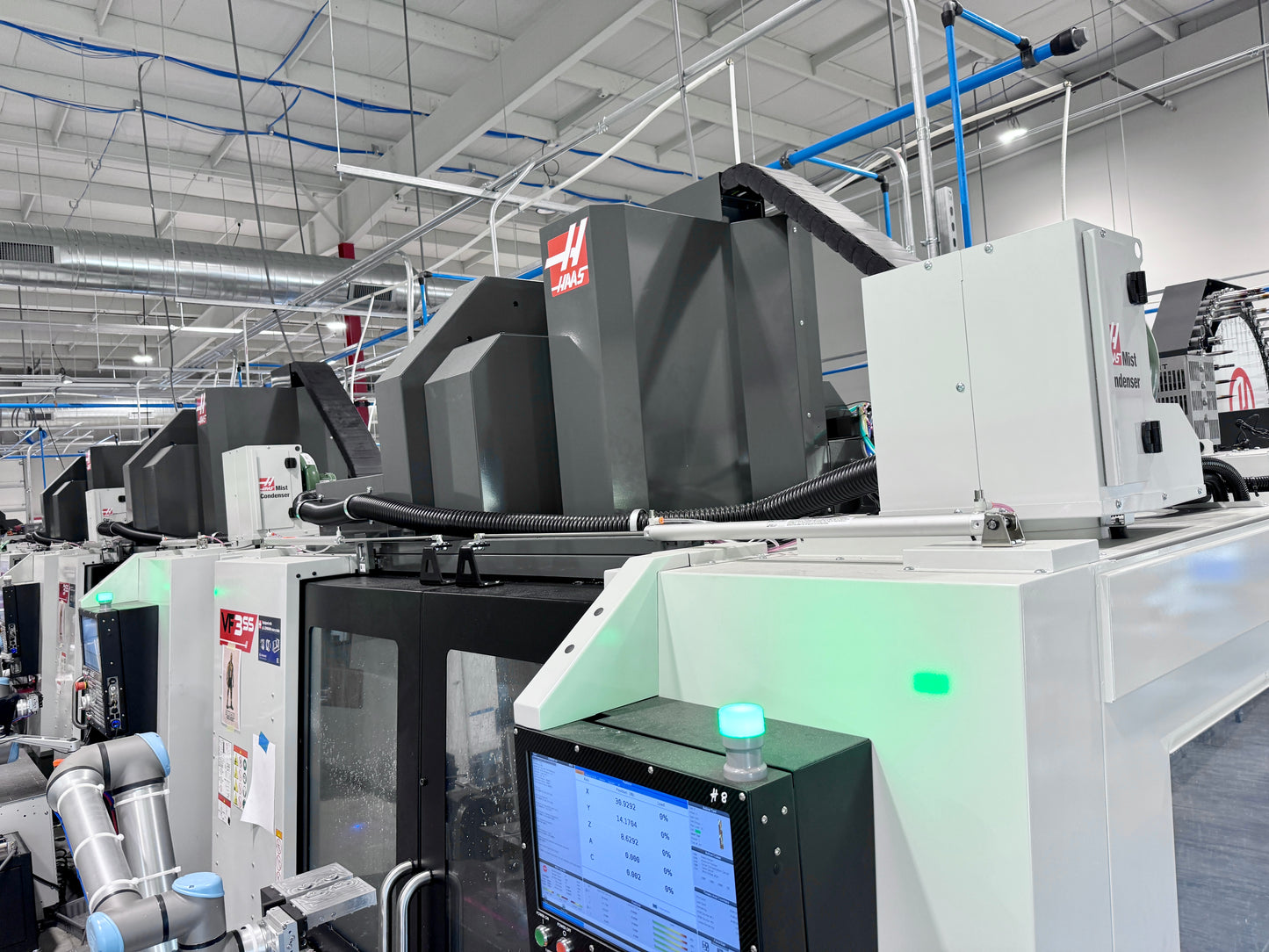

Automated Door System Retro Fit Kit- For HAAS VF series

Increase machine utilization, reduce operator intervention, and take the next step toward lights-out manufacturing with the Otter Automation Automatic CNC Door System.

Designed as a complete bolt-on retrofit solution, this system automatically opens and closes your machine door throughout the machining cycle, eliminating unnecessary operator interaction and reducing cycle-to-cycle delays. Whether parts are being loaded by an operator, robot, or cobot, the door system creates a seamless workflow that keeps production moving.

When the machining cycle is complete, the door automatically opens to provide access to the work area. Once the part has been loaded or unloaded, the door closes automatically and the next cycle begins. Door operation is controlled directly through standard M-codes and requires only two 24V machine signals—Cycle Start and Cycle Complete—making integration simple, reliable, and compatible with existing automation systems.

Built for demanding industrial environments, the system utilizes heavy-duty pneumatic components engineered for long service life and dependable performance. The included retrofit kit contains everything needed for installation, allowing most machines to be upgraded quickly with minimal modification.

Features & Benefits

• Fully automatic door opening and closing
• Reduces operator involvement and machine idle time
• Ideal for robotic and cobot machine tending
• Complete bolt-on retrofit kit included
• Industrial-grade pneumatic components
• Simple integration using standard M-codes
• Minimal machine modification required
• Designed and manufactured in the USA

Specifications

• Operating Voltage: 24V DC
• Air Consumption: 2.4 SCFM @ 100 PSI
• Rated Life: 100,000+ cycles
• Control Inputs: Cycle Start & Cycle Complete
• Compatible with standard CNC automation systems

Machine Compatibility

Compatible with HAAS VF Series machines.

Custom-Tailored Automation Solutions

Every shop is different, and not every machine fits a standard kit. Otter Automation specializes in designing custom automation solutions tailored to your specific equipment and production requirements. Whether you need an automatic door system for a machine not listed above, a custom mounting configuration, integration with an existing robot or cobot cell, or a completely unique automation project, our team can design and build a solution that fits your operation.

Lead Time

Each Automatic Door System is built and configured to order. Standard kits typically ship within 1–2 weeks of order placement. Custom systems and special machine configurations may require additional lead time depending on project requirements.

From improving operator efficiency to enabling fully automated production, the Otter Automation Automatic CNC Door System delivers a reliable, cost-effective path toward higher productivity and lights-out manufacturing.
