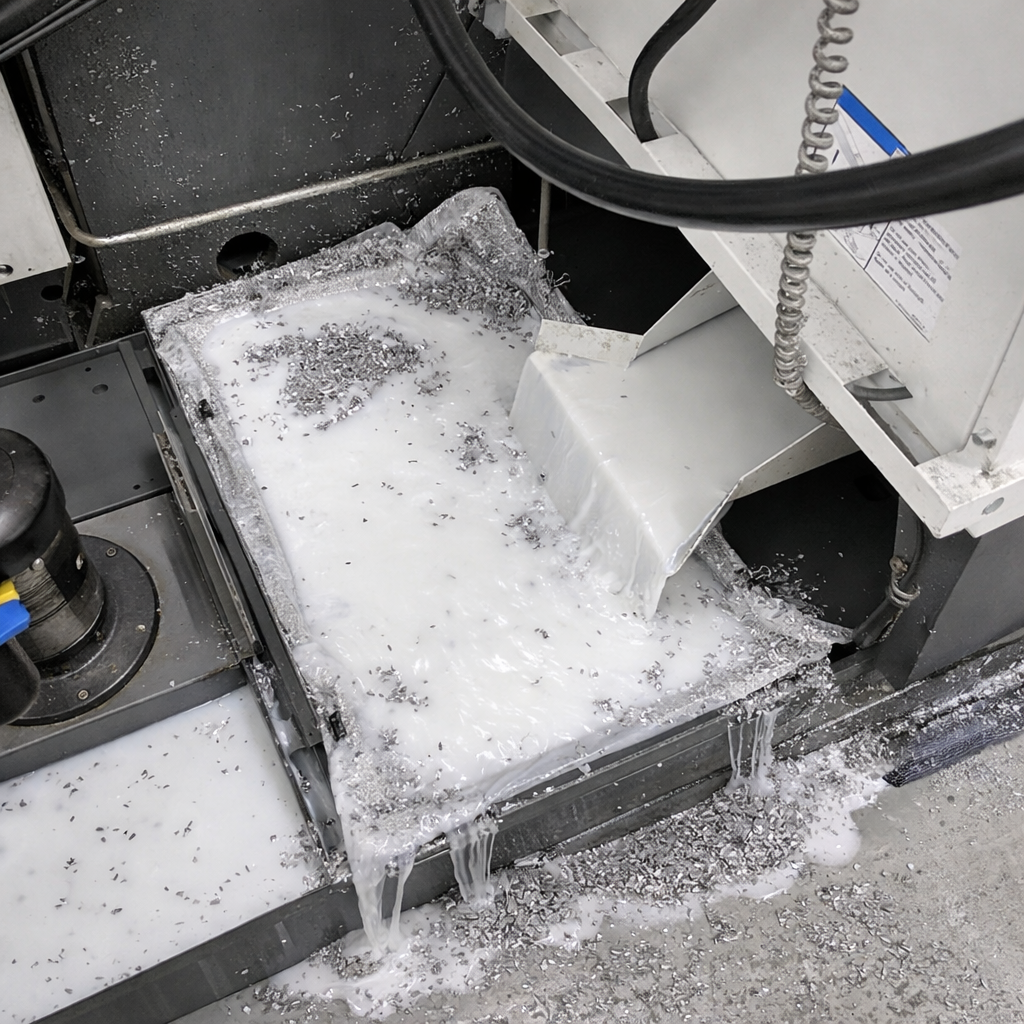

Custom Coolant Filter Tray Solutions

When standard trays don’t fit your machine—or your process—we build one that does.

Our custom coolant tray solutions are designed for shops that need higher performance, better filtration, or a form factor tailored to a specific machine setup. Whether you’re dealing with heavy chip loads, or unique coolant management requirements, we design each tray to match your exact application.

Instead of forcing your machine to fit a generic solution, we engineer a tray that integrates cleanly, performs reliably, and supports your production goals from day one.

Built Around Your Machine

Every custom tray is designed based on your machine model, sump dimensions, and coolant requirements. This ensures:

• Proper drop-in fitment
• Optimized coolant flow and filtration
• Maximum chip and debris capture
• Easy lift-out maintenance and cleaning

How It Works

1. Contact Us
Reach out to our team with your machine model and application needs.

2. Provide Measurements & Details
We’ll request key information such as:

• Sump opening dimensions
• Machine make and model
• Coolant type and flow conditions
• Chip load and material type
• Any clearance or clearance restrictions

3. Design & Engineering
We design a custom tray tailored to your machine, optimizing fit, capacity, and filtration performance.

4. Build & Approval
Once the design is finalized, we fabricate your tray using industrial-grade materials and send it out for production.

5. Delivery
Your tray ships ready to install ( 2- 3 week lead time )

What You Get

• Fully custom-engineered coolant tray
• Designed specifically for your machine and sump
• Low-micron reusable 316 stainless steel filtration screen
• High-capacity design (typically up to 3× standard basket volume)
• Drop-in, lift-out installation for fast maintenance
• Industrial-grade aluminum and stainless construction
• Built for long-term use in production environments
• Made in the USA

Construction & Performance

• Frame: 0.063” 5052-H32 aluminum
• Fasteners: stainless steel rivets
• Filter media: reusable 316 stainless steel screen
• Low-micron filtration for fine chip and debris capture
• Designed to reduce coolant waste and extend coolant life
• Supports lights-out machining environments

Custom Ordering Process

Because every machine and shop setup is different, all custom coolant trays are quoted individually.

Pricing depends on:

• Machine model and sump configuration
• Tray size and capacity requirements
• Filtration requirements and chip load
• Level of customization needed

Our team will review your application and provide a tailored solution built specifically for your machine.

Getting Started

To begin, email us with:

• Machine make and model
• Sump measurements (photos recommended)
• Chip material and machining type
• Any special requirements or constraints

From there, we’ll handle the design and guide you through the rest of the process.

Custom-built. Precision fit. Built for production.
