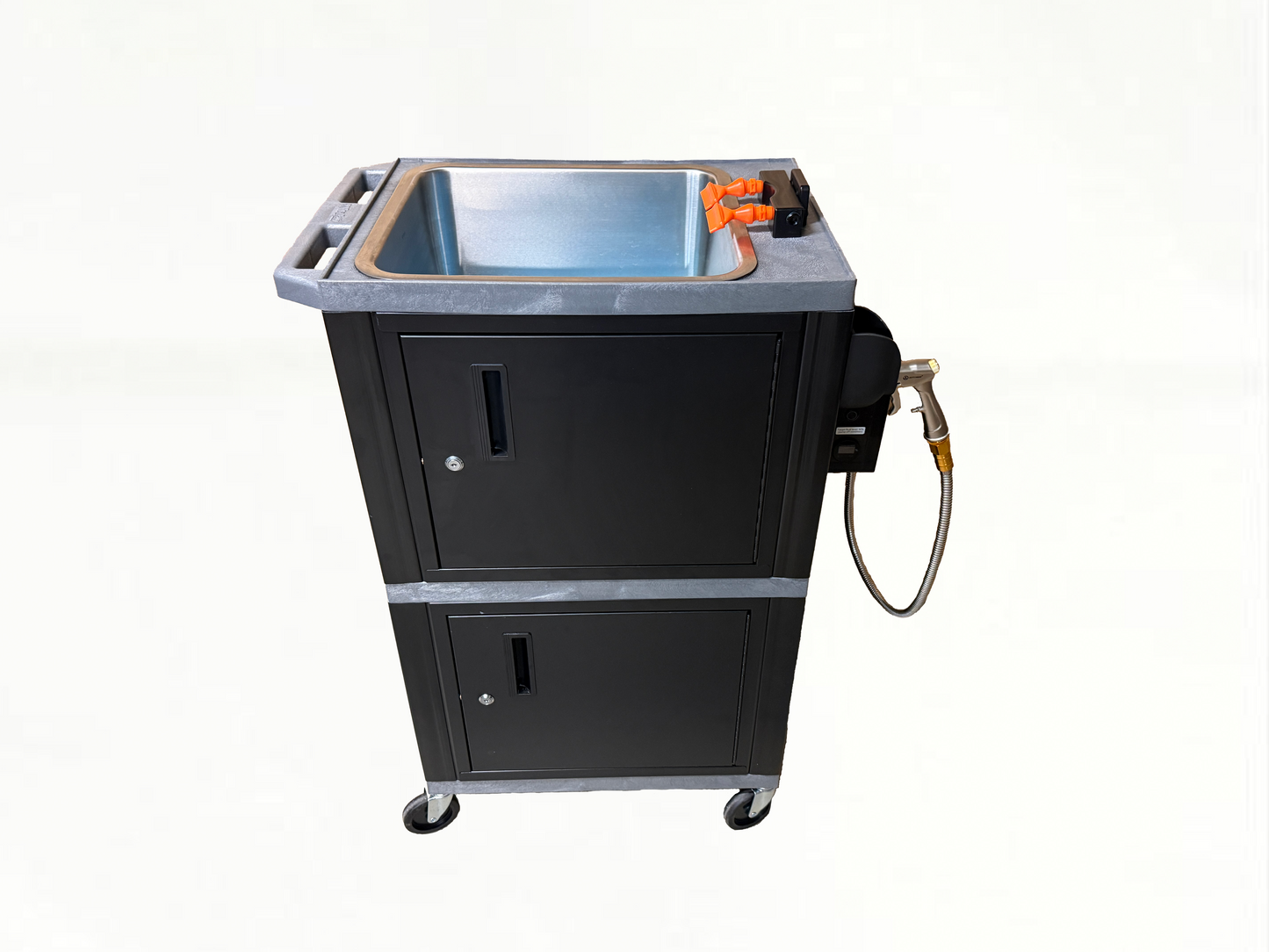

Otter Wash XL - Automated Portable Parts Washing System

$2,600.00 USD
$3,499.00 USD $2,600.00 USD
Sale Sold out
View full details

Need customization?

We can Tailor our solutions to your work flow

Get a Quote

Please allow a 3-week build time prior to shipment

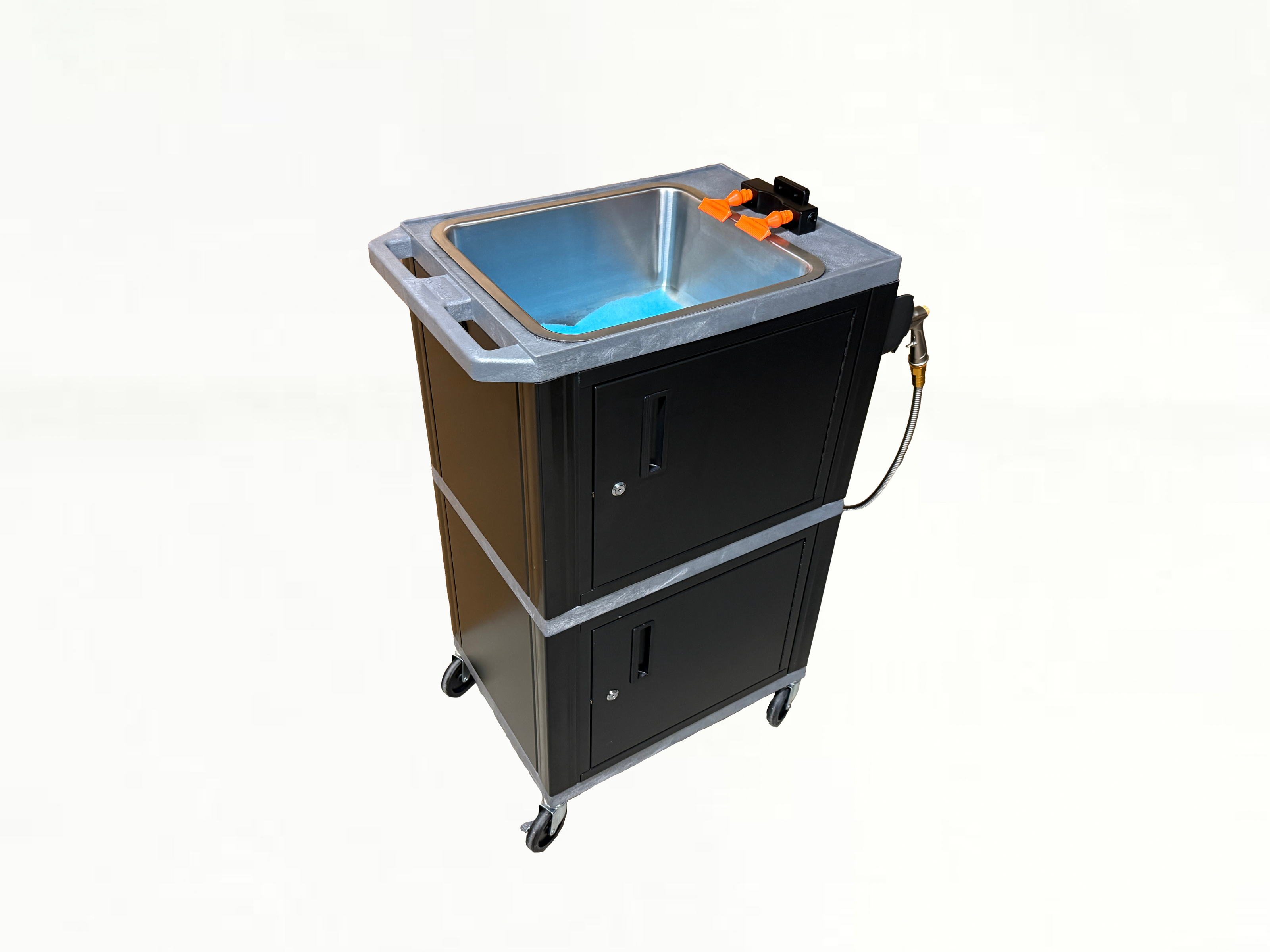

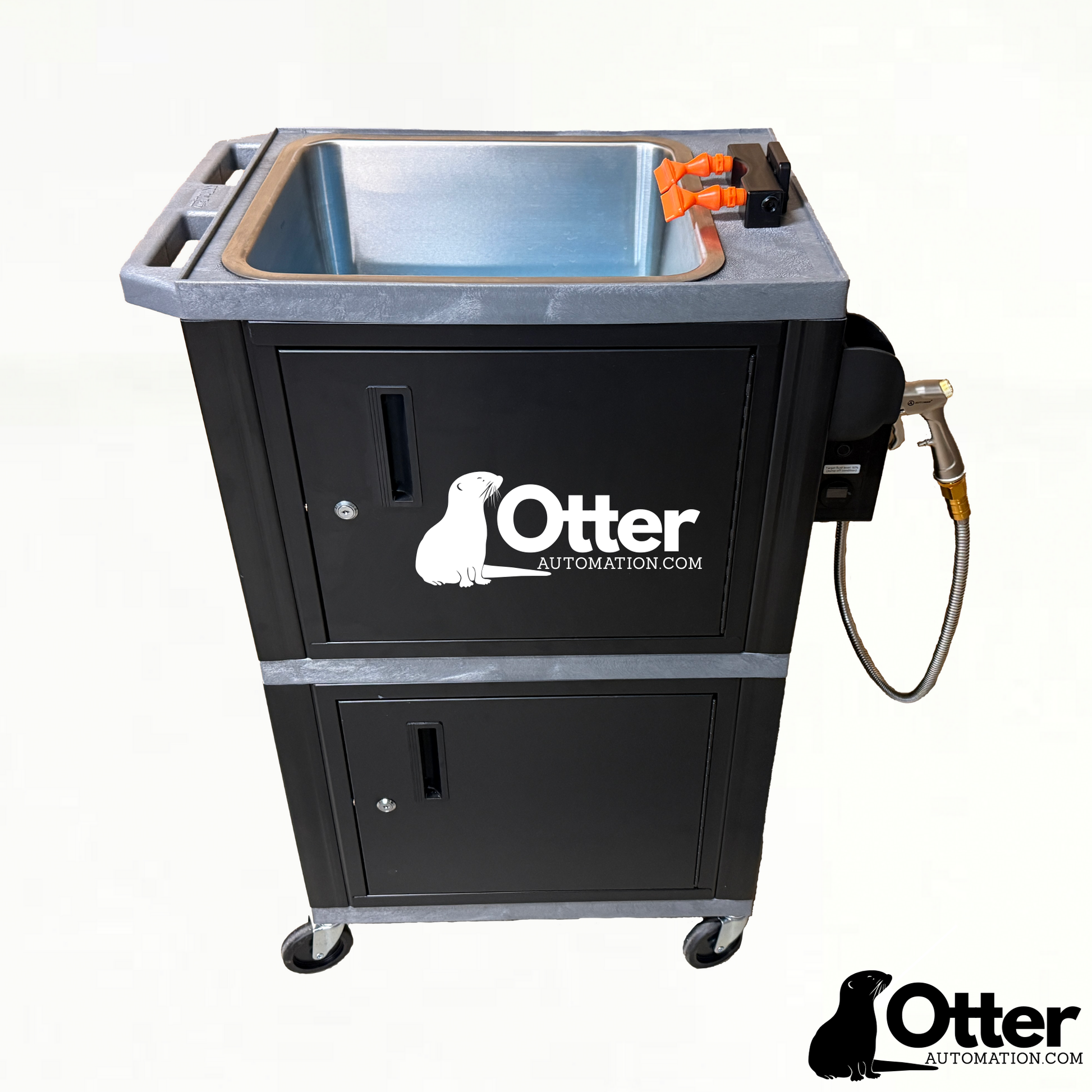

The Otter Wash XL is a standalone, upright version of our standard automated wash system, specifically redesigned for manual cleaning operations. This ergonomic, stand-up configuration provides a complete cleaning solution for modern parts cleaning.

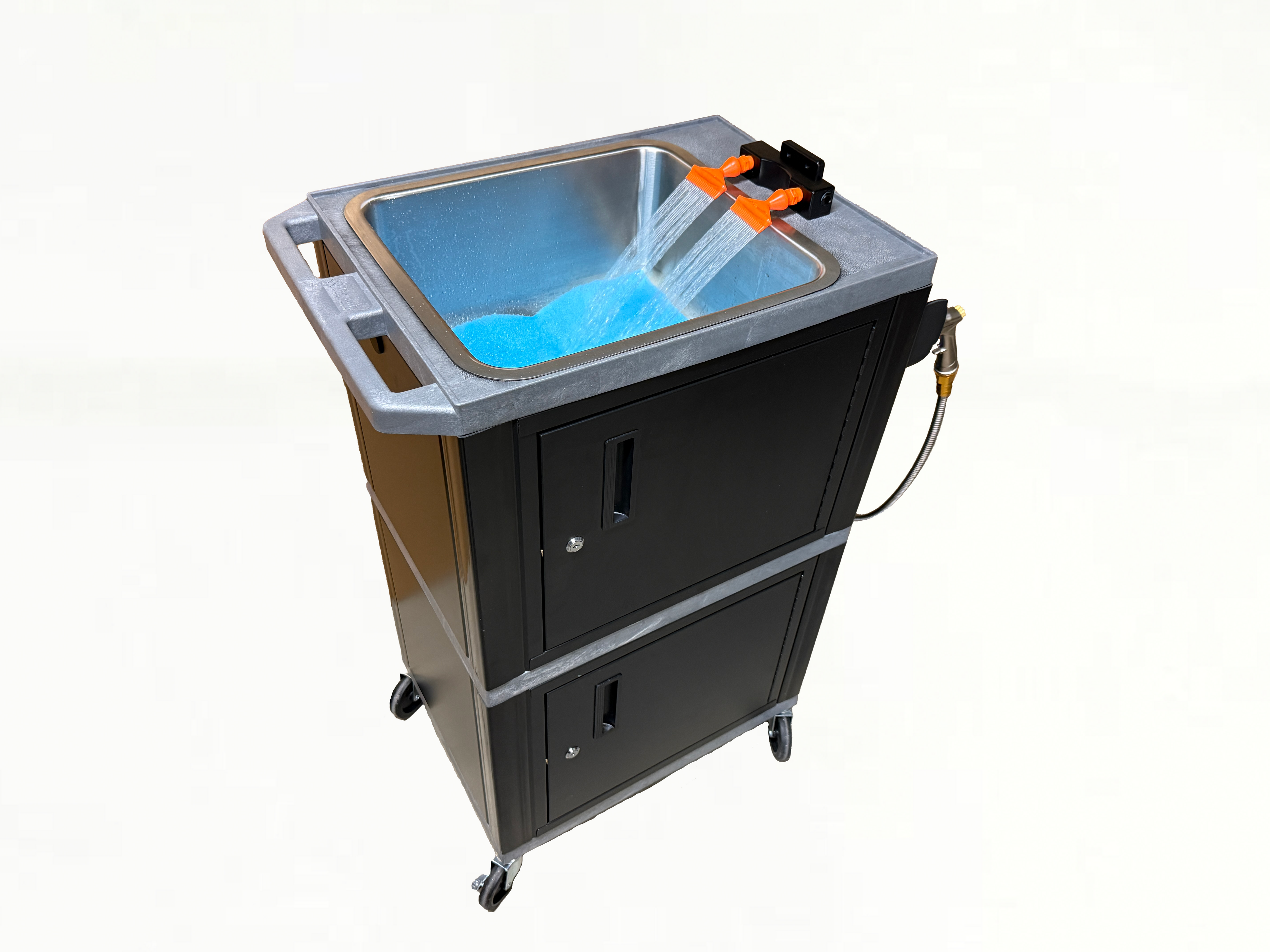

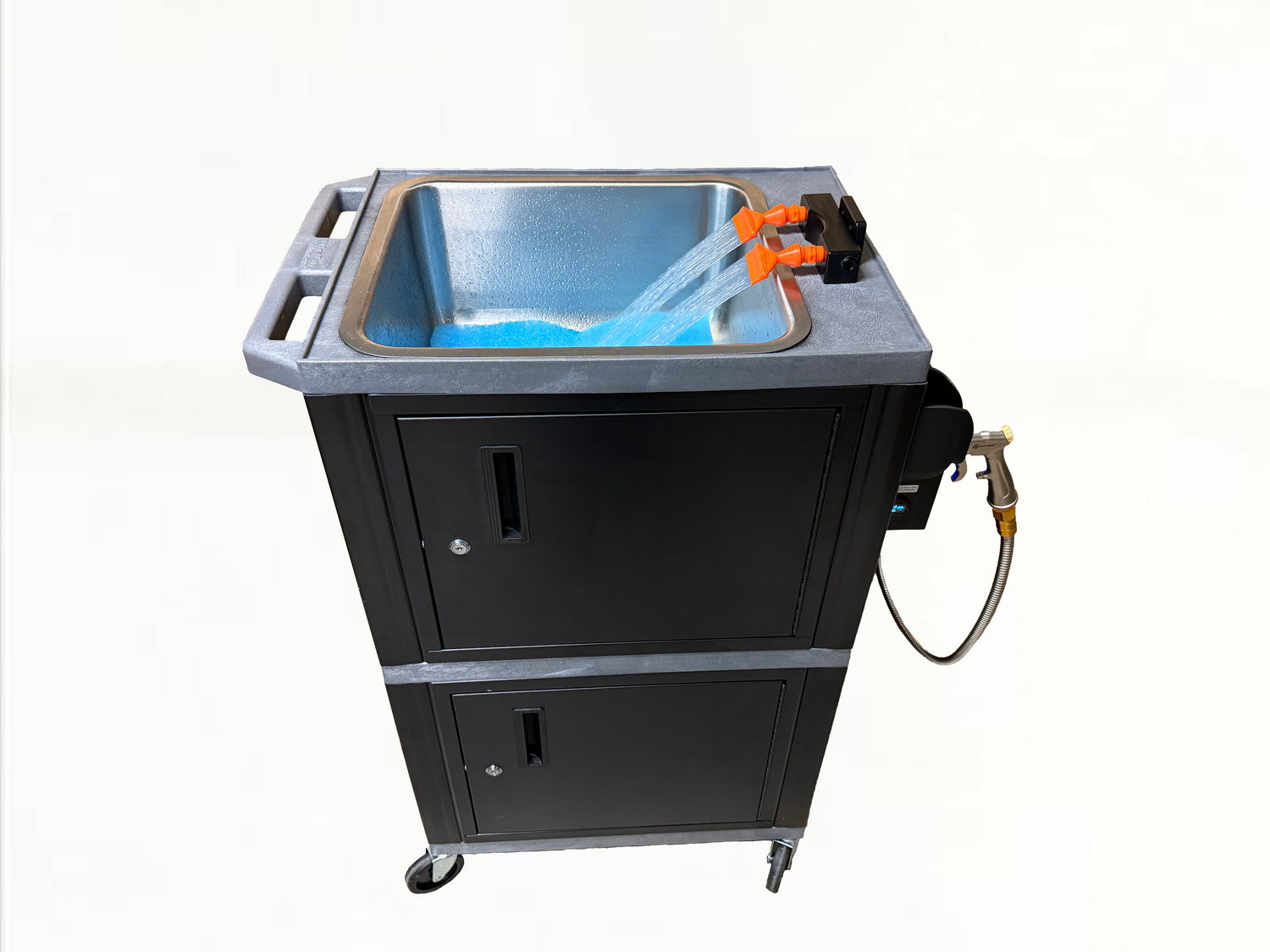

Equipped with versatile line lock nozzles, the XL removes chips and oily residue from parts of all shapes and sizes. It features an external sprayer for highly targeted cleaning and high-speed draining to maintain efficiency during continuous use.

The space-saving footprint. seamlessly intergrates into your existing shop floor. While optimized for manual tasks, the system maintains 24v machine input for maximum flexibility into automation cells.

  • Features

    Seamless robot & cobot integration (or stand-alone use)

    -

    wired machine integration & manual on/off switch

    -

    Integrated coolant drip tray

    -

    Versatile Line-loc nozzle connections for varied applications

    -

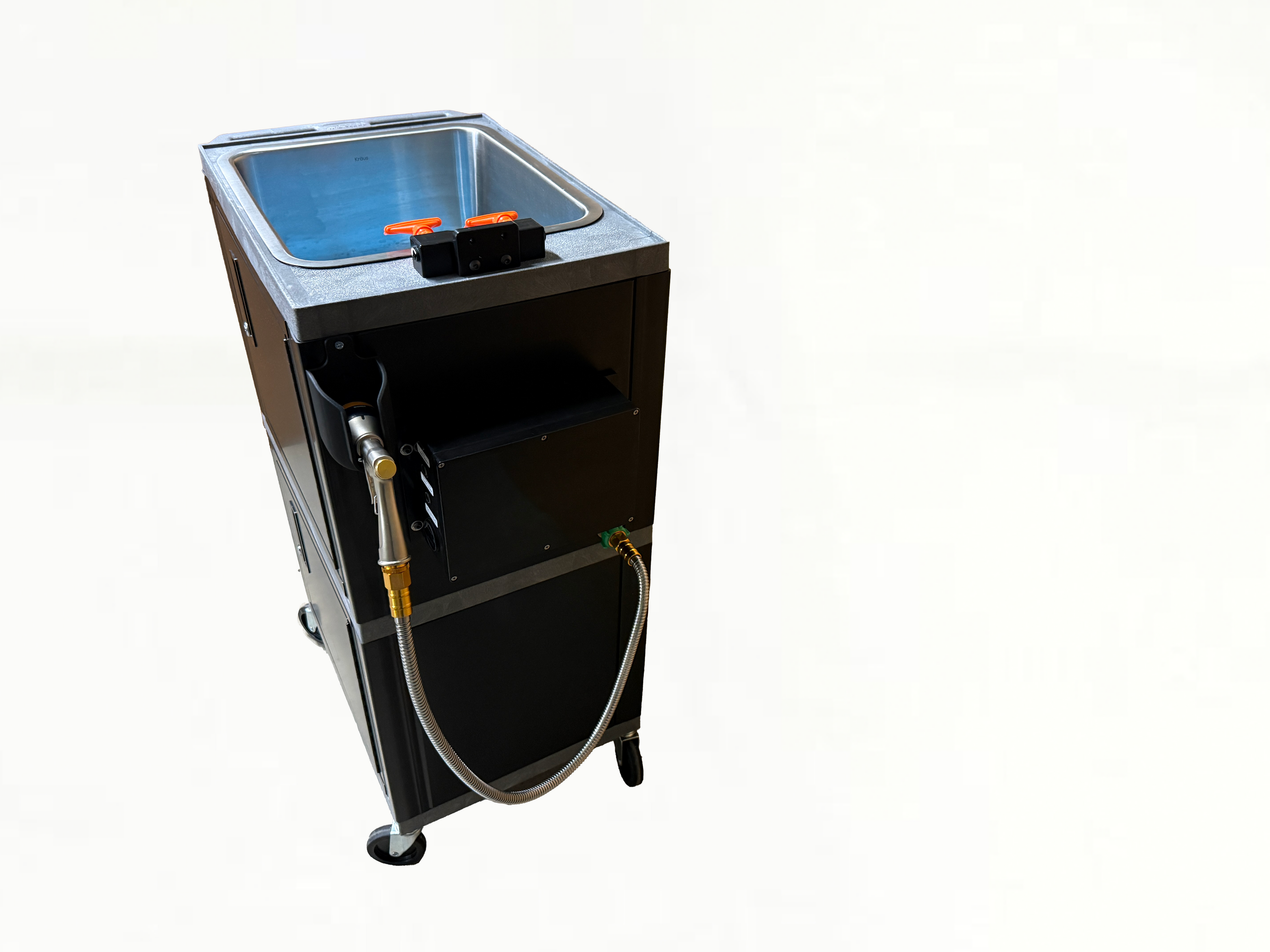

    External hose & sprayer for manual cleaning

    -

    Power drain for easy solution changes and maintenance

  • Benefits

    Efficiently removes chips and oily residues after machining

    -

    Compact, space-saving design fits tight shop floors

    -

    Saves operator time with automated cleaning cycles

    -

    Improves shop efficiency by reducing manual labor

    -

    Cuts chemical use and waste disposal costs

    -

    Provides flexibility with both automated and manual control

    -

    Supports lean operations with minimal floor space and downtime

    -

    Fully self-contained system

  • Applications

    Manufacturing & Industrial

    • CNC Lights Out Machining
    • Automotive Component Manufacturing
    • Aerospace & Defense
    • Tool & Die / Mold Making
    • Process Inspection
    • Cobot Finishing

    -

    Advanced Technology

    • Additive Manufacturing (3D Printing)
    • Electronics Cleaning
    • Medical Manufacturing
    • Robotics & Automation Integration
    • Optical & Photonics Engineering

    -

    Maintenance & Specialized Shops

    • MRO (Maintenance, Repair, and Operations)
    • Automotive Restoration
    • Hydraulic & Pneumatic System Repair
    • Custom Jewelry & Watchmaking
    • Technical Education & Makerspaces

  • Specifications

    Dimensions & Capacity

    • 24” W × 18” D × 42” H
    • 1.5 gallon tank capacity

    -

    Pump & Filtration

    • 5.5 GPM pump (self-priming, CE certified)
    • Auto start/stop with thermal protection
    • 2.1 max amp current draw
    • 50-micron stainless steel mesh inline filter (reusable)

    -

    Electrical System

    • Standard 120V plug with built-in GFCI (UL listed)
    • Internally regulated 24V power supply
    • Waterproof sealed junction box (IP67 rated)
    • Automation standard M8 bulkhead (IP67 rated)

    -

    Construction & Mobility

    • Stainless steel wash tub (corrosion-resistant)

    -

    Controls & Sensors

    • Manual on/off switch
    • 24V machine input trigger
